Automatic Return Tank Water-Level Control Assembly
Replace the conventional mechanical float-valve approach with electronic water-level sensing and automatic valve control.
$330.00
Shipping and applicable taxes are additional.
Instructions included for self-installation.
Sensor mounted outside the existing sight glass
Automatic water-supply valve control
No mechanical float required inside the tank
The problem

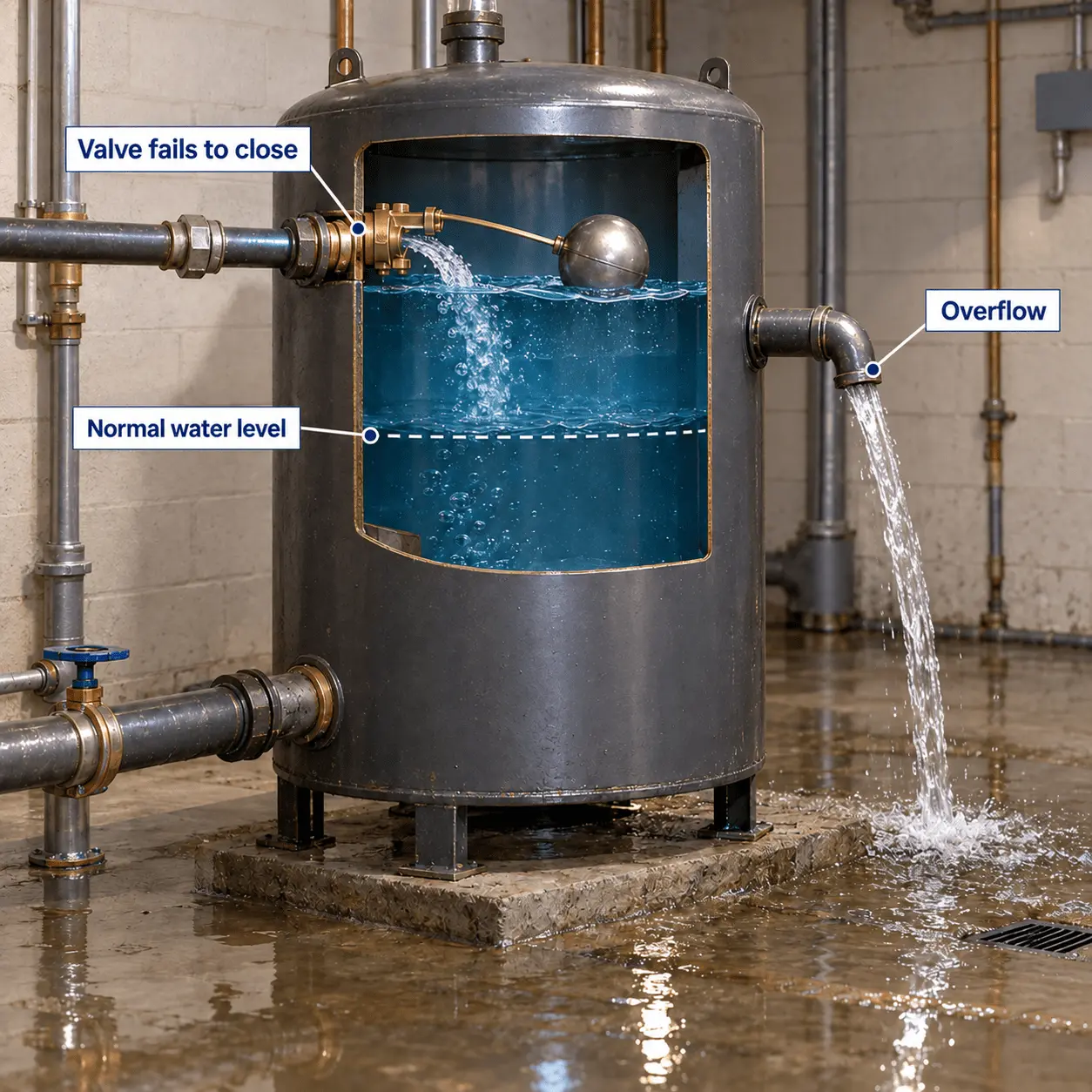

When a float valve fails to close.
Conventional boiler return tanks generally use a mechanical ball-float valve to regulate incoming water.
Mechanical float valves can wear out, stick, or fail to seal completely over time. When this happens, water may continue entering the tank even after it reaches the proper level.
- Unnecessary water use and excessively high water levels
- Tank overflow
- Water hammer, vibration, and possible damage to piping or equipment
- Additional maintenance and service costs
A better way to control return tank water levels
How it works
The system detects the water level through the tank's existing sight glass and automatically operates the water-supply solenoid valve.
01 / SENSOR
Detects the water level

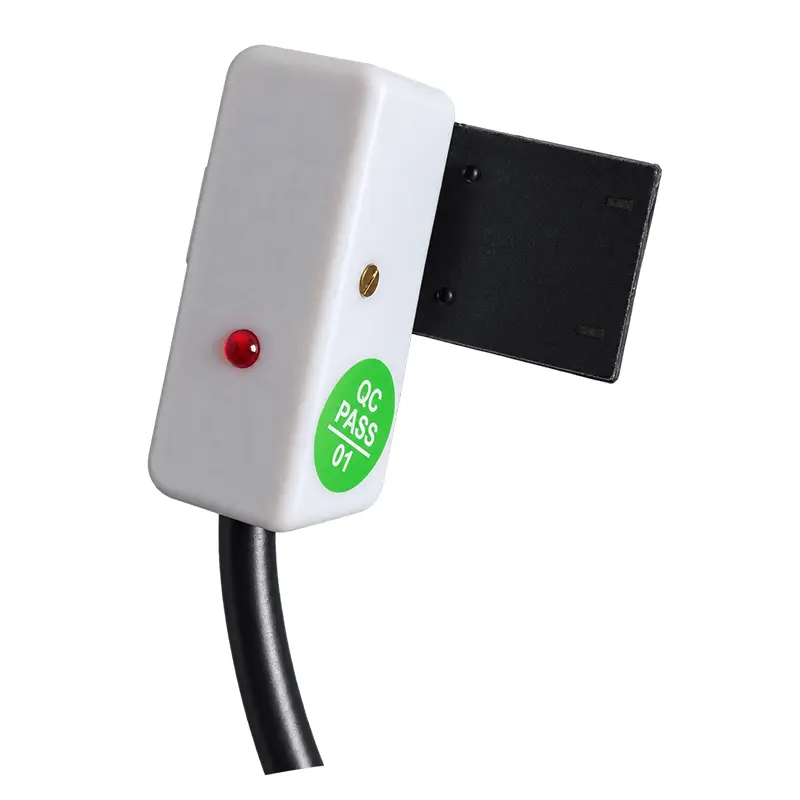

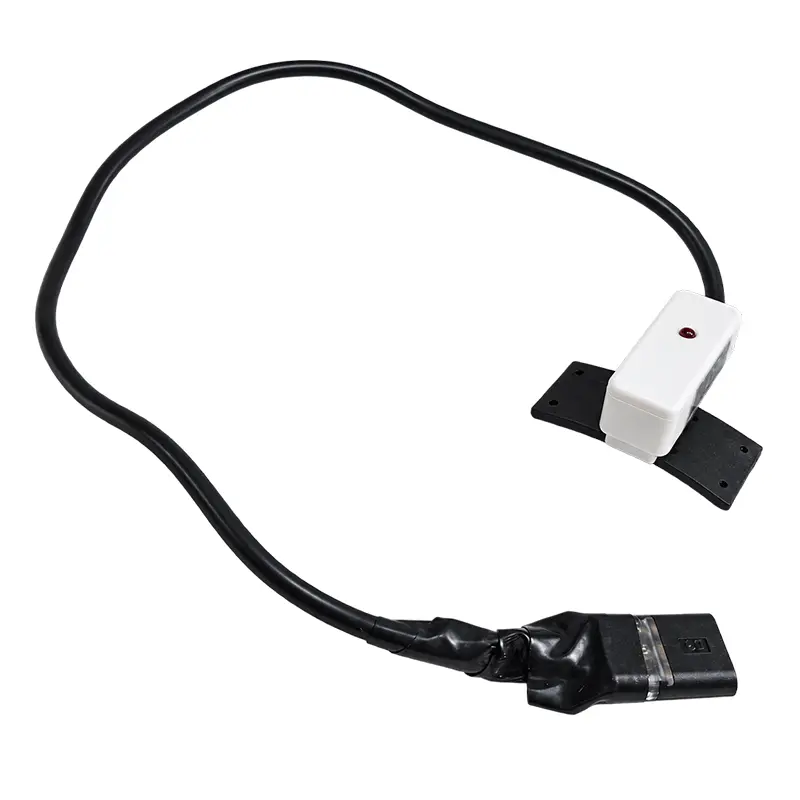

The electronic water-level sensor is mounted on the outside of the return tank's sight glass at the desired operating level.
02 / CONTROLLER
Receives the signal
As the water level changes, the control system determines whether additional water is needed.
03 / SOLENOID VALVE
Controls the water
supply
When additional water is needed, the valve opens. When the set level is reached, the system closes the valve.
Sensor detects the level → Controller determines action → Solenoid valve controls the supply
Video Installation Guide

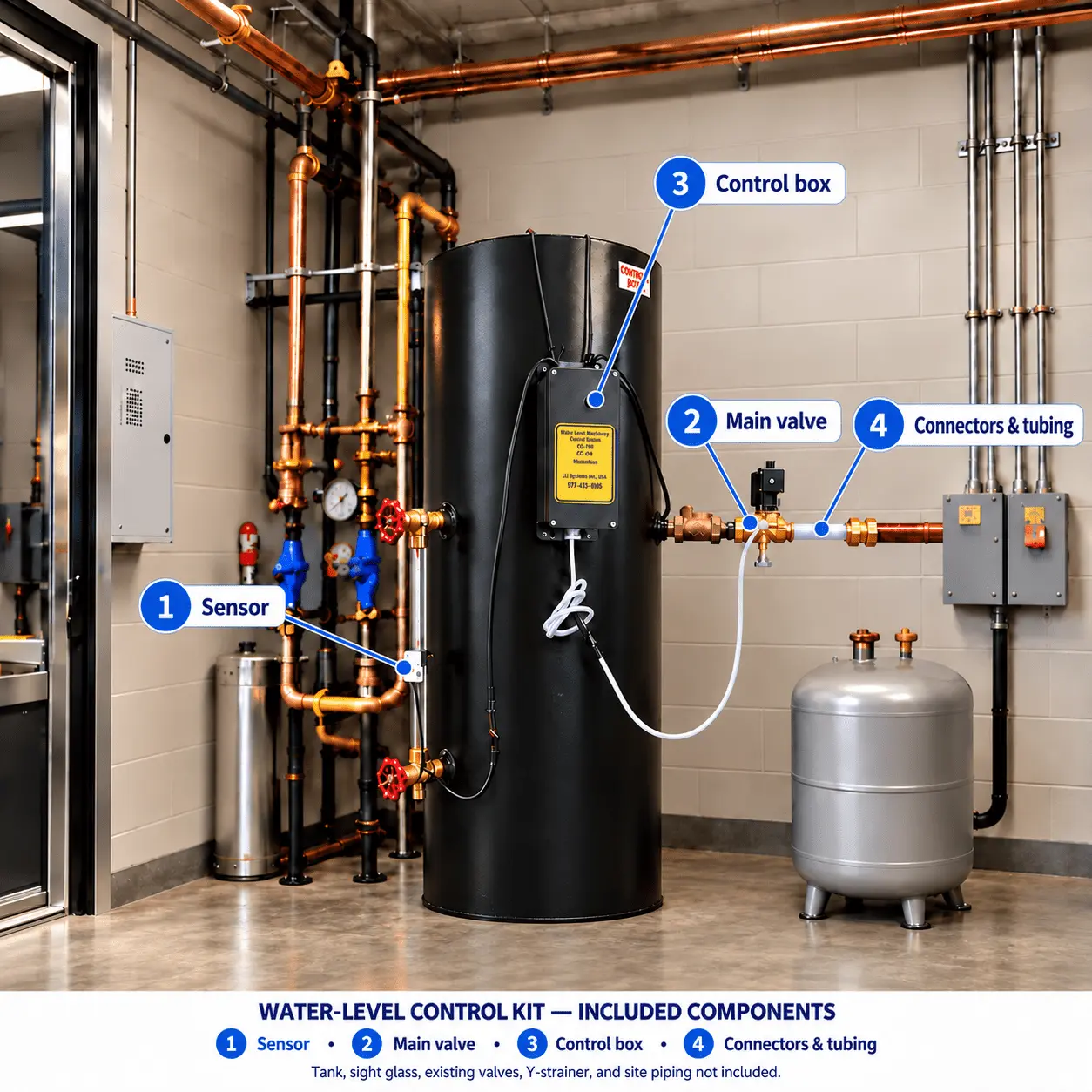

The assembly

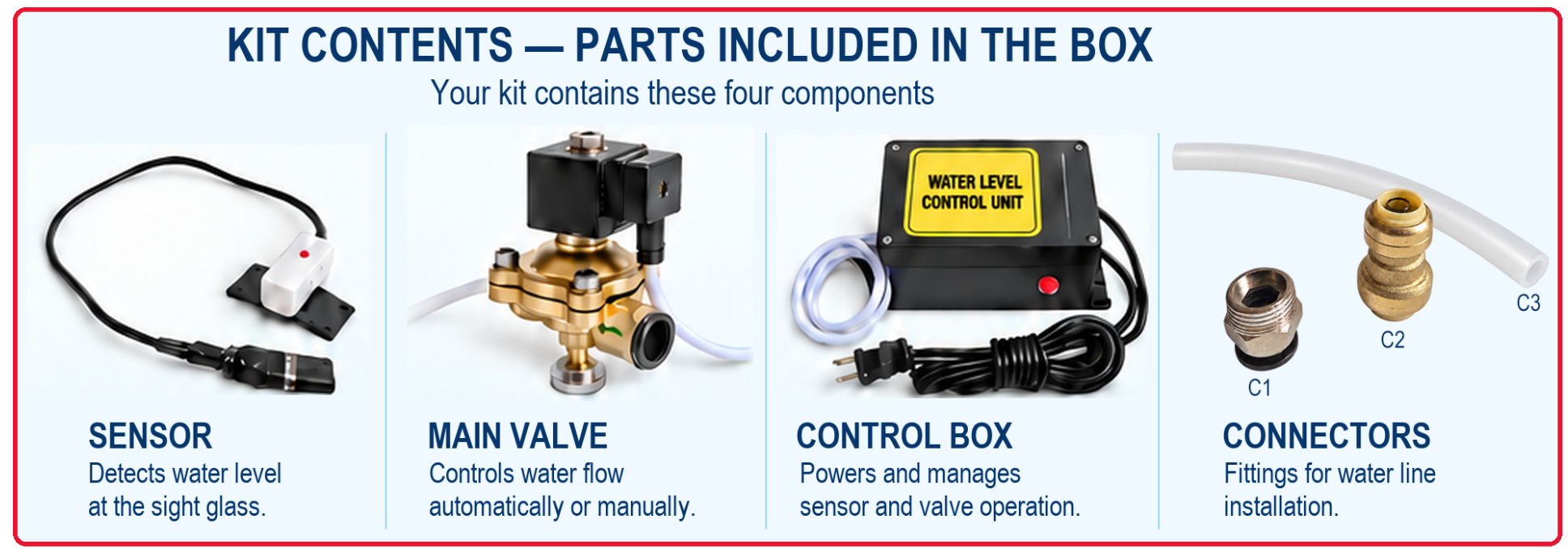

Parts included in the box.
The sensor, main valve, control box, and connectors are shown here so you can see the supplied parts before ordering.
Why replace a conventional ball float valve
The same function, a different way.
Mechanical float valves rely on moving mechanical parts and a mechanical seal. The G&A system performs the same function with electronic sensing and automatic valve control.
The old way
Conventional Ball Float Valve
A mechanical float rises and falls with the water level, moving a lever that opens or closes the water supply valve.
- Mechanical operation
- Float located inside the tank or at the tank side
- Moving mechanical parts regulate the water supply
- Valve may fail to close completely as it wears
The better way
G&A Automatic Water Level
Control Assembly
The electronic water-level sensor is mounted on the outside of the returntank’s sight glass at the desired operating level.
- Electronic water-level sensing
- Sensor mounted outside the sight glass
- Electrically controlled automatic water supply
- Indicator light makes sensor operation easy to check
- Manual operation available when needed
Installation overview
Set the level. Check the operation.
The sensor is installed at the desired water-level position on the return tank's sight glass. The check valve and solenoid valve must be installed in the water-supply piping in the correct flow direction.
After setup, sensor and valve operation can be checked by moving the water level above and below the sensor position.
Instructions included for self-installation. Follow the supplied assembly directions and verify sensor and valve operation before use.
If an issue remains after following the instructions, email a description and clear photos or a short video to info@gaengineeringservices.com
 for review.
The better way
G&A Automatic Water Level Control Assembly
- Electronic water-level sensing
- Sensor mounted outside the sight glass
- Electrically controlled automatic water supply
- Indicator light makes sensor operation easy to check
- Manual operation available when needed

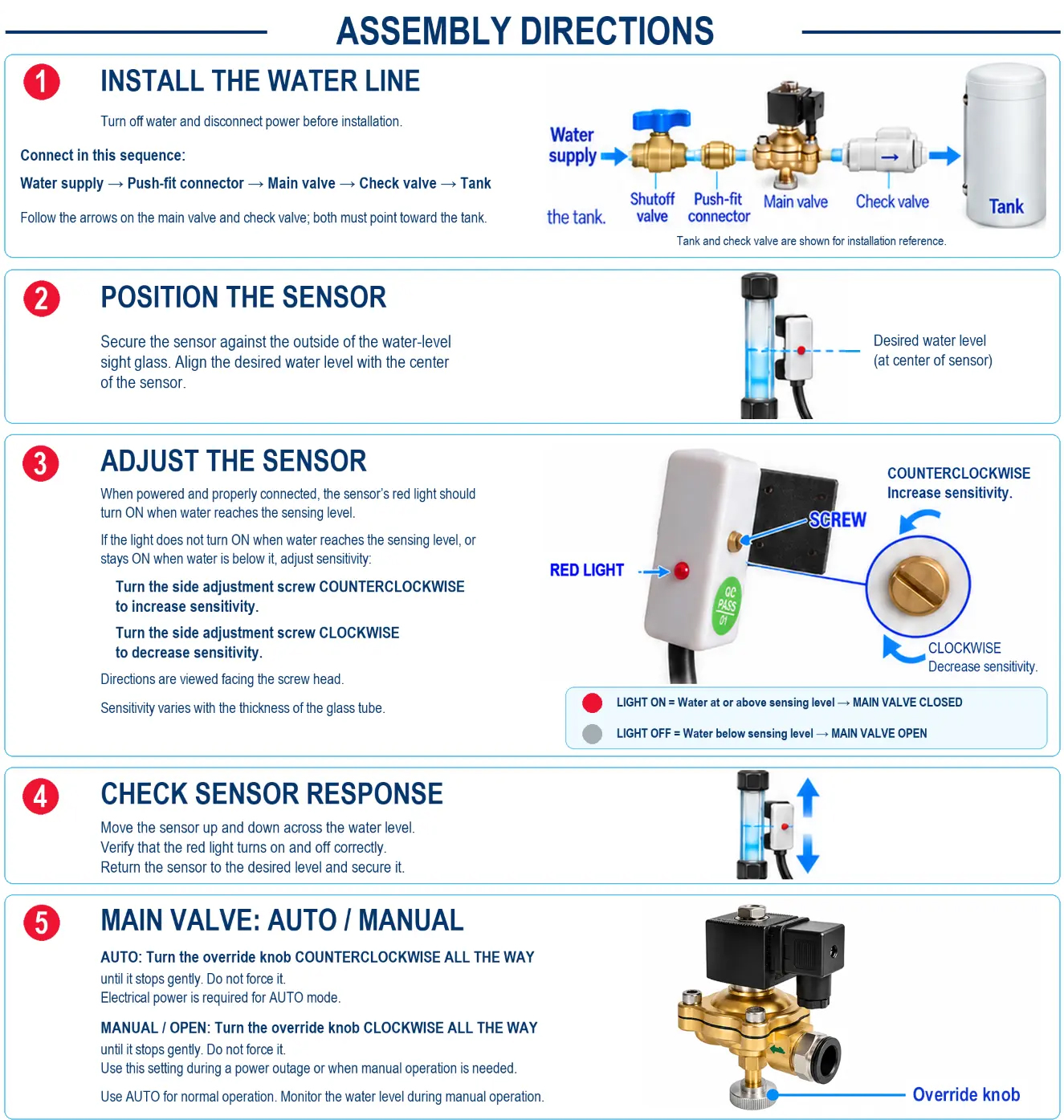

Assembly directions
See the installation steps.
The supplied guide shows the water-line sequence, sensor position and adjustment, response check, and automatic/manual valve operation.
G&A Engineering
Automatic Return Tank Water-Level Control Assembly
Electronic water-level sensing. Automatic water-supply control. No conventional mechanical float required inside the tank.
For installation inquiries, product information, or orders, contact G&A Engineering.
Questions and answers
Does the system require a float inside the tank?
No. The electronic sensor is mounted outside the return tank's existing sight glass.
Can the water supply be operated manually?
Yes. The supplied solenoid valve has both automatic and manual operating modes.
Can I install the assembly myself?
Customers familiar with their boiler return-tank system can install the assembly using the supplied instructions. Installation should follow the instructions and applicable local requirements. If you're unsure about your setup, contact us before starting.
Is installation assistance available?
G&A Engineering Services offers on-site installation assistance within 50 miles of Suwanee, Georgia, by appointment. For remote assistance, send us clear photos or a short video of your tank, sight glass, and water-supply connections. We can review your setup and arrange a video consultation to discuss installation questions.
Contact us for availability and any service fees
